Building a Microphone Wind Screen

 A piece of foam material

 A piece of fake fur. The longer the hairs the better it will work

 Formed a tube shape an glued together with hot glue

Put it over my stage line microphone. It works perfect, no more wind-noise.

New D.I.Y. Shouldermount

Details will follow

Vote for us

Please vote for us We reached the top 20 in the Panfu video contest. Would be great if you could go to blog.panfu.com and vote for us. All you have to do is to click on awallmovies on the right side. Thanks

A Short for the Panfu Circus contest "Der Zersägte Assistent"

A Short for the Panfu Circus contest

Nominated 2010

Nominated for the Camgaroo Award

"I'm Out" short movie nominated

My short movie "I'm out" is nominated for the Camgaroo Award Night 2010

Viper 118

Working on my new movie Viper 118. A Trailer will come soon

Film Banner

Short Movie "I'm out" is finished

Feedbacks are welcome

Follow focus

Trying to build a follow focus

My new Mattebox

My new Mattebox

Working on my new short movie "I'm Out"

The installed motor for my vibrating DOF adapter

The installed pancake motor. It's fixed with hot glue and connected to the external controller box

Finally, a pancake motor for my 35mm adapter

I found an old Motorola pager in the trash and I took the vibrating motor out
Now my static DOF adapter will shortly be a vibrating DOF adapter

My Rod Support

I used two aluminium tubes with 12mm diameter and +- 50cm length













tube clamps

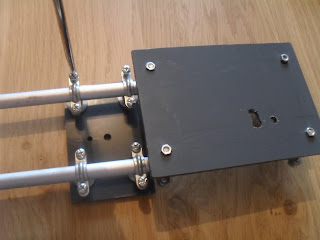

I fixed the tube clamps on a PVC board but you could use wood too.
The hole on the left is for fixing the camera












The same PVC board from the other side














Slide the two tubes in the tube clamps and fix them













A smaller PVC board with a 6mm hole to fix the tripod













Fix the second board upside down on the tubes














This screw came from a small 3$ table tripod














Fixing the cam
Between the tube clamps I used 8mm nuts to set the pvc board higher and to set the cam in line with my 35mm adapter

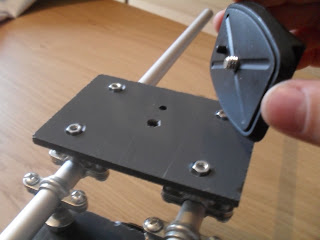

The mounting plate from the tripod













The cam on my rod support.
Now I can connect the 35mm adapter without problems. It's stable and no chance to damage the camera

First test footage with my static 35mm Adapter

Test Footage with my 35mm static adapter

My first movie with rotorscoping

Here is a 15 sec short I created in 2009

View through the DOF adapter with a Macro lens

I use a 8x 55mm Macrolens to get a better image

Pvc panel with Nikon "Type D" Gound Glass

Pvc panel with Nikon "Type D" focusing screen.
Ower the four threaded rods I can set the distance between the Ground Glass and the optics.

35mm DOF Adapter Components

The 35 mm adapter consists of a junction box painted black. On a black PVC plate a Nikon focusing screen "type D" was used.
